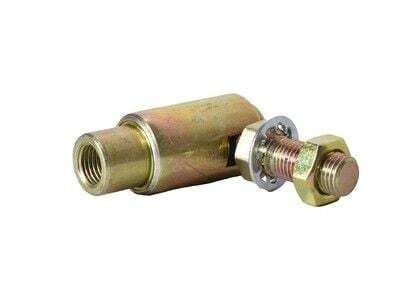

Quick Disconnect Ball Joint 3/16" X 3/16" UNF Plated Steel (21200)

3/16" x 3/16" UNF Quick Disconnect Ball Joint – Plated Steel

The 21200 is a 3/16" x 3/16" UNF quick disconnect ball joint designed for mechanical control cable and linkage applications.

The spring-loaded quick-release housing slides back to release the stud, allowing the cable linkage to be disconnected quickly when required. This makes the ball joint particularly useful where a control cable or linkage needs to be removed or disconnected during servicing or adjustment.

The ball joint has a steel housing with a zinc-plated finish and is commonly used with push-pull cables, shifter cables, throttle cables and multi-carburettor linkage systems.

Specifications

• SKU: 21200
• Ball joint type: Quick disconnect / quick release
• Thread: 10-32 (3/16") UNF
• Stud: 10-32 (3/16") UNF
• Thread length: 0.438"
• Stud length: 0.438"
• Housing: Steel
• Finish: Zinc plated
• Release mechanism: Spring-loaded sliding housing

Application note: Intended for mechanical control cable and linkage applications. Select the ball joint according to the load and operating requirements of the application.

FAQs

What size is the 21200 ball joint?
It uses 10-32 (3/16") UNF threading with a matching 10-32 stud.

What does quick disconnect mean?
The spring-loaded housing slides back to release the stud, allowing the cable linkage to be disconnected quickly.

What are quick release ball joints used for?
They are commonly used with push-pull cables, shifter cables, throttle cables and mechanical linkage systems.

Is 3/16" the same as 10-32 UNF?
In this product specification, 3/16" refers to the nominal thread size and the thread is specified as 10-32 UNF.
