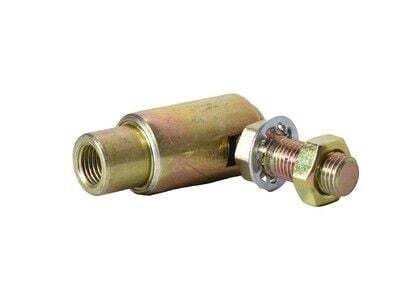

Quick Disconnect Ball Joint 3/16" X 1/4" UNF (Plated Steel) 21202

3/16" x 1/4" UNF Quick Disconnect Ball Joint – Plated Steel

The 21202 is a 3/16" x 1/4" UNF quick disconnect ball joint designed for mechanical control cables and linkage systems.

It features a 10-32 (3/16") UNF thread and a 1/4-28 UNF stud. The spring-loaded housing slides back to release the stud, providing a convenient quick-release connection where cable removal or disconnection is required.

Manufactured with a steel housing and zinc-plated finish, this ball joint is commonly used with push-pull control cables, shifter cables, throttle cables and multi-carburettor linkage setups.

Specifications

• SKU: 21202
• Type: Quick disconnect / quick release ball joint
• Housing thread: 10-32 (3/16") UNF
• Stud thread: 1/4-28 UNF
• Housing: Steel
• Finish: Zinc plated
• Release mechanism: Internal spring-loaded sliding housing

Application note: Always select a ball joint according to the load rating and operating conditions of the application.

FAQs

What threads does the 21202 use?
The housing uses a 10-32 (3/16") UNF thread and the stud uses a 1/4-28 UNF thread.

How does the quick disconnect work?
The internal spring-loaded housing slides back to release the stud.

What applications use this ball joint?
Common applications include push-pull cables, shifter cables, throttle cables and multi-carburettor linkage systems.
