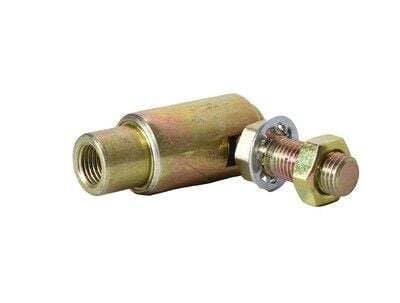

Quick Disconnect Ball Joint 1/4" X 1/4" UNF Plated Steel (21205)

1/4" x 1/4" UNF Quick Disconnect Ball Joint – Plated Steel

The 21205 is a 1/4" x 1/4" UNF quick disconnect ball joint for mechanical control cable and linkage applications.

Both the housing and stud use 1/4-28 UNF threading. The spring-loaded housing slides back to release the stud, providing a quick and convenient way to disconnect a control cable or linkage during servicing, adjustment or maintenance.

The ball joint is manufactured from steel with a zinc-plated finish and is commonly used with push-pull cables, shifter cables, throttle cables and other mechanical linkage systems.

Specifications

• SKU: 21205
• Type: Quick disconnect / quick release ball joint
• Thread: 1/4-28 UNF
• Stud: 1/4-28 UNF
• Housing: Steel
• Finish: Zinc plated
• Release mechanism: Internal spring-loaded sliding housing

Common applications: Push-pull control cables, shifter cables, throttle cables and mechanical linkage systems.

FAQs

What thread does the 21205 ball joint use?
Both the housing and stud use 1/4-28 UNF threading.

Why use a quick disconnect ball joint?
It allows a control cable or linkage to be disconnected quickly without completely removing the ball joint from the assembly.

What is the 21205 made from?
It has a steel housing with a zinc-plated finish.
