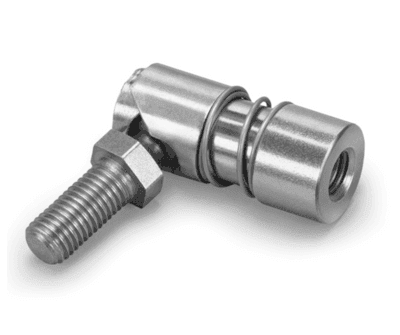

Quick Disconnect Ball Joint 1/4" X 5/16" UNF Plated Steel (21207)

1/4" x 5/16" UNF Quick Disconnect Ball Joint – Plated Steel

The 21207 is a plated steel quick disconnect ball joint with a 1/4-28 UNF housing thread and 5/16-24 UNF stud. The different thread sizes make this ball joint useful where the control cable connection and operating mechanism require different thread dimensions.

The internal spring-loaded housing slides back to release the stud, allowing the connected cable or linkage to be disconnected quickly.

Common applications include push-pull control cables, shifter cables, throttle cables and mechanical linkage systems.

Specifications

• SKU: 21207
• Type: Quick disconnect / quick release ball joint
• Housing thread: 1/4-28 UNF
• Stud thread: 5/16-24 UNF
• Housing thread length: 0.531"
• Stud thread length: 0.562"
• Housing: Steel
• Finish: Zinc plated
• Release mechanism: Internal spring-loaded sliding housing

Application note: Confirm both thread sizes and the load requirements of the application before selecting the ball joint.

FAQs

What are the two thread sizes on the 21207?
The housing uses a 1/4-28 UNF thread and the stud uses a 5/16-24 UNF thread.

Why does the ball joint have two different thread sizes?
The different thread sizes allow the ball joint to connect components with different thread requirements.

Is the 21207 a quick release ball joint?
Yes. The spring-loaded housing slides back to release the stud.
