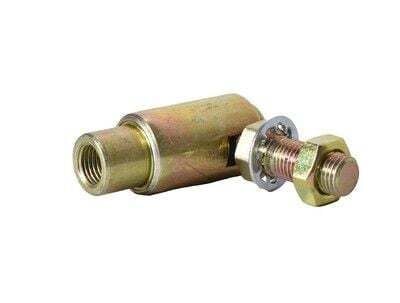

Quick Disconnect Ball Joint 3/8" X 3/8" UNF Plated Steel (21212)

3/8" x 3/8" UNF Quick Disconnect Ball Joint – Plated Steel

The 21212 is a 3/8" x 3/8" UNF quick disconnect ball joint designed for mechanical control cable and linkage applications requiring a larger UNF connection.

The housing and stud both use 3/8-24 UNF threading. An internal spring-loaded mechanism allows the housing to slide back and release the stud, making it convenient to disconnect the cable linkage for servicing, adjustment or maintenance.

The ball joint is manufactured from steel and has a zinc-plated finish. It is commonly used with push-pull cables, shifter cables, throttle cables and other mechanical linkage systems.

Specifications

• SKU: 21212
• Type: Quick disconnect / quick release ball joint
• Thread: 3/8-24 UNF
• Stud: 3/8-24 UNF
• Housing thread length: 0.812"
• Stud thread length: 0.875"
• Housing: Steel
• Finish: Zinc plated
• Release mechanism: Internal spring-loaded sliding housing

Application note: Confirm the required thread size, movement and load requirements before selecting a ball joint for an application.

FAQs

What thread does the 21212 ball joint use?
Both the housing and stud use 3/8-24 UNF threading.

What is the 21212 used for?
It is commonly used with push-pull control cables, shifter cables, throttle cables and mechanical linkage systems.

How does the quick release mechanism work?
The housing slides back against an internal spring to release the stud.
