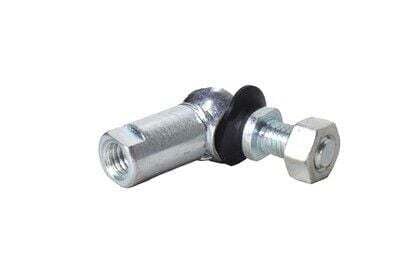

M8 X 1.25 Metric Ball Joint Plated Steel (21306)

M8 x 1.25 Metric Ball Joint – Plated Steel

The 21306 M8 x 1.25 metric ball joint is a plated steel cable ball joint designed for connecting mechanical control cables to operating levers and linkages.

This fixed steel ball joint has an M8 x 1.25 metric thread and stud. It is manufactured from low-carbon steel to DIN 71802 and finished with a zinc-clear coating. A neoprene dust shield helps protect the bearing cavity from contamination.

The M8 ball joint is commonly used with push-pull control cables, shifter cables, throttle cables and other light-duty mechanical control systems where a compact articulated connection is required.

Specifications

• Product: Fixed steel ball joint
• SKU: 21306
• Thread: M8 x 1.25
• Stud: M8 x 1.25
• Stud length: 14 mm
• Thread length: 16.5 mm
• Housing: Low-carbon steel
• Standard: DIN 71802
• Finish: Zinc clear
• Dust protection: Neoprene dust shield

Application note: This ball joint is intended for light-duty cable and linkage applications. It should not be used for suspension components or sway bar end links. Always check application load requirements before installation.

FAQs

What thread does the 21306 ball joint use?
The 21306 uses an M8 x 1.25 metric thread and M8 x 1.25 stud.

Where are M8 cable ball joints used?
They are commonly used in mechanical control cable systems, including push-pull, shifter and throttle applications.

Is the 21306 suitable for suspension applications?
No. It is designed as a light-duty cable ball joint rather than a suspension or sway bar component.

What is the finish?
The ball joint has a zinc-clear finish over low-carbon steel.
