M10 X 1.50 Metric Ball Joint Plated Steel (21308)

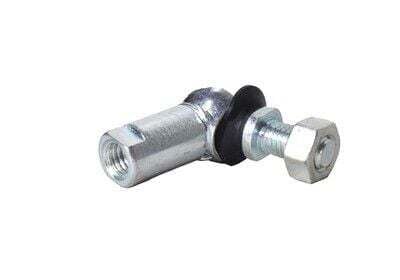

M10 x 1.50 Metric Ball Joint – Plated Steel

The 21308 M10 x 1.50 metric ball joint is a plated steel cable ball joint designed for use with mechanical control cable systems. It provides a compact articulated connection between a control cable and the mechanism it operates, helping accommodate movement and alignment changes within the linkage.

This fixed steel ball joint features M10 x 1.50 threading and is suitable for applications using an M10 x 1.50 stud. The housing is manufactured from low-carbon steel to DIN 71802 and has a zinc-clear finish. A neoprene dust shield helps protect the bearing cavity from contamination.

Common applications include push-pull control cables, shifter cables, throttle cables and other light-duty mechanical linkage systems.

Specifications

• Product: Fixed steel ball joint
• SKU: 21308
• Thread: M10 x 1.50
• Stud: M10 x 1.50
• Stud length: 15.5 mm
• Thread length: 20 mm
• Housing: Low-carbon steel
• Standard: DIN 71802
• Finish: Zinc clear
• Dust protection: Neoprene dust shield

Application note: This is a light-duty cable ball joint and is intended for mechanical control cable and linkage applications. It is not suitable for suspension components or sway bar end links. Always select a ball joint based on the load, movement and operating conditions of the application.

FAQs

What size thread does the 21308 ball joint have?
The 21308 ball joint has an M10 x 1.50 metric thread and M10 x 1.50 stud.

What are M10 ball joints used for?
They are commonly used to connect mechanical control cables to levers, linkages and mechanisms in applications such as push-pull cables, shifter cables and throttle controls.

Is the 21308 suitable for suspension applications?
No. This is a light-duty cable ball joint and should not be used for suspension components or sway bar end links.

What is the ball joint made from?
The housing is manufactured from low-carbon steel to DIN 71802 and has a zinc-clear finish.
