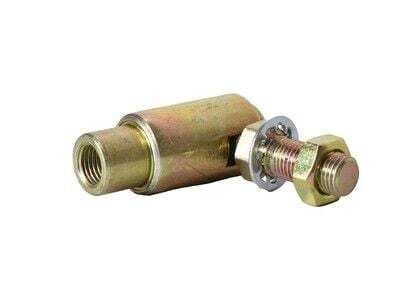

Quick Disconnect Ball Joint 5/16" X 5/16" UNF Plated Steel (21208)
Quick Release Ball Joint – Plated Steel
To Suit: All threads 5/16 – 24”unf with 5/16 – 24” unf stud
5/16" x 5/16" UNF quick disconnect ball joint in plated steel for push-pull, shifter, throttle and mechanical control cable linkages.
PURCHASE 2-4 OF THIS ITEM FOR A 10% DISCOUNT
PURCHASE 5 OF THIS ITEM FOR A 20% DISCOUNT
5/16" x 5/16" UNF Quick Disconnect Ball Joint – Plated Steel
The 21208 is a plated steel quick disconnect ball joint designed for mechanical control cable and linkage applications requiring a 5/16" UNF connection.
The quick-release design uses an internal spring-loaded housing that slides back to release the stud. This provides a convenient way to disconnect a control cable or linkage when carrying out servicing, adjustment or maintenance.
The 5/16" x 5/16" configuration is suitable for applications where both the ball joint housing and stud require a 5/16" UNF thread.
Common applications include push-pull control cables, shifter cables, throttle cables and mechanical linkage systems.
Specifications
- SKU: 21208
- Type: Quick disconnect / quick release ball joint
- Thread: 5/16" UNF
- Stud: 5/16" UNF
- Housing: Plated steel
- Release mechanism: Internal spring-loaded sliding housing
Application note: Confirm the exact thread pitch and dimensions required for the application before ordering. Ball joints should always be selected according to the load and operating requirements of the mechanical control system.
FAQs
What size is the 21208 ball joint?
The 21208 is a 5/16" x 5/16" UNF quick disconnect ball joint.
What is a 5/16" ball joint used for?
It is used to connect mechanical control cables and linkages where a 5/16" UNF connection is required.
Is the 21208 a quick release ball joint?
Yes. It uses a spring-loaded housing that slides back to release the stud.
