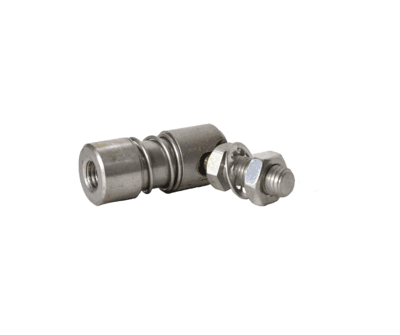

Quick Disconnect Ball Joint 3/16" X 3/16" UNF Stainless Steel (21203)

3/16" x 3/16" UNF Stainless Steel Quick Disconnect Ball Joint

The 21203 is a stainless steel quick disconnect ball joint designed for mechanical control cable and linkage applications. It provides a convenient articulated connection between a control cable and the mechanism it operates, while allowing the cable connection to be quickly released when required.

Both the housing and stud use a 10-32 (3/16") UNF thread. The ball joint is manufactured from 300 Series Stainless Steel with a polished finish, making it a suitable option where stainless-steel construction is preferred.

The quick-release housing slides back against an external spring to release the stud. This allows the connected cable or linkage to be removed quickly for servicing, adjustment or maintenance.

The 21203 is commonly used with push-pull control cables, shifter cables, throttle cables and multi-carburettor linkage systems.

Specifications:

• SKU: 21203
• Product type: Quick disconnect / quick release ball joint
• Housing thread: 10-32 (3/16") UNF
• Stud thread: 10-32 (3/16") UNF
• Thread length: 0.438"
• Stud thread length: 0.438"
• Housing material: 300 Series Stainless Steel
• Finish: Polished
• Quick-release mechanism: External spring
• Includes: Stainless steel nut and washer

Also known as: Removable ball joint, detachable ball joint.

Application note: Ball joints should be selected according to the load, movement and operating requirements of the application. Using a ball joint outside its intended application may result in component failure.

FAQs

What size thread does the 21203 ball joint have?
The 21203 has a 10-32 (3/16") UNF thread on both the housing and stud.

What is the 21203 ball joint made from?
It is manufactured from 300 Series Stainless Steel with a polished finish.

Is the 21203 a quick-release ball joint?
Yes. The housing slides back against an external spring to release the stud.

What cables can the 21203 be used with?
It is commonly used with push-pull cables, shifter cables, throttle cables and multi-carburettor linkage systems.

Does the 21203 include a nut and washer?
Yes. The product includes a stainless steel nut and washer.
