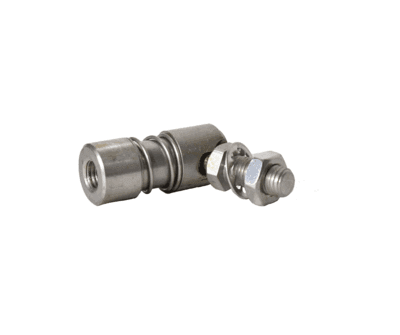

Quick Disconnect Ball Joint 1/4" X 1/4" UNF Stainless Steel (21206)

1/4" x 1/4" UNF Stainless Steel Quick Disconnect Ball Joint

The 21206 is a 1/4" x 1/4" UNF stainless steel quick disconnect ball joint designed for mechanical control cable and linkage applications.

Both the housing and stud use a 1/4-28 UNF thread. The housing is manufactured from 300 Series Stainless Steel and has a polished finish.

The quick-release housing slides back against an external spring to release the stud, allowing a control cable or linkage to be disconnected quickly when servicing, adjustment or maintenance is required.

This stainless steel ball joint is commonly used with push-pull control cables, shifter cables, throttle cables and multi-carburettor linkage systems.

Specifications:

• SKU: 21206
• Product type: Quick disconnect / quick release ball joint
• Housing thread: 1/4-28 UNF
• Stud thread: 1/4-28 UNF
• Housing thread length: 0.531"
• Stud thread length: 0.562"
• Housing material: 300 Series Stainless Steel
• Finish: Polished
• Quick-release mechanism: External spring

Also known as: Removable ball joint, detachable ball joint.

Application note: Select the ball joint according to the load, movement and operating requirements of the application.

FAQs

What thread does the 21206 ball joint use?
Both the housing and stud use a 1/4-28 UNF thread.

What material is the 21206 made from?
The housing is manufactured from 300 Series Stainless Steel with a polished finish.

How does the quick disconnect work?
The housing slides back against an external spring to release the stud.

What applications is the 21206 suitable for?
It is commonly used with push-pull cables, shifter cables, throttle cables and multi-carburettor linkage systems.
