Quick Disconnect Ball Joint 5/16" X 5/16" UNF Stainless Steel (21209)

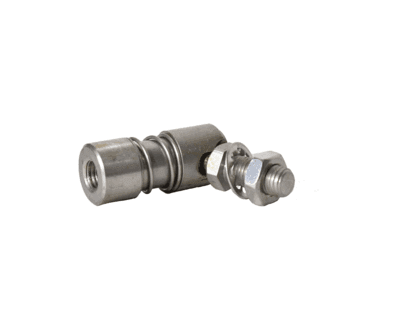

5/16" x 5/16" UNF Stainless Steel Quick Disconnect Ball Joint

The 21209 is a 5/16" x 5/16" UNF stainless steel quick disconnect ball joint designed for mechanical control cable and linkage applications.

Both the housing and stud use a 5/16-24 UNF thread. The ball joint is manufactured from 300 Series Stainless Steel with a polished finish.

The quick-release housing slides back against an external spring to release the stud. This provides a convenient way to disconnect a control cable or linkage during servicing, adjustment or maintenance without completely removing the ball joint from the assembly.

The 21209 is commonly used with push-pull control cables, shifter cables, throttle cables and multi-carburettor linkage systems.

Specifications:

• SKU: 21209
• Product type: Quick disconnect / quick release ball joint
• Housing thread: 5/16-24 UNF
• Stud thread: 5/16-24 UNF
• Housing material: 300 Series Stainless Steel
• Finish: Polished
• Quick-release mechanism: External spring

Also known as: Removable ball joint, detachable ball joint.

Application note: Confirm the required thread size and application load before selecting a ball joint. The current product page contains an incomplete housing-thread-length specification, so this dimension should be verified before being added to the product description.

FAQs

What thread does the 21209 use?
The 21209 uses 5/16-24 UNF threading on both the housing and stud.

What is the 21209 made from?
It is manufactured from 300 Series Stainless Steel with a polished finish.

Is the 21209 a quick-release ball joint?
Yes. The housing slides back against an external spring to release the stud.

What cables are commonly used with this ball joint?
It is commonly used with push-pull cables, shifter cables, throttle cables and multi-carburettor linkage systems.
