Stainless Steel Ball Joint 3/16" x 6mm (K9)

Stainless Steel 3/16" x 6 mm Ball Joint – K9

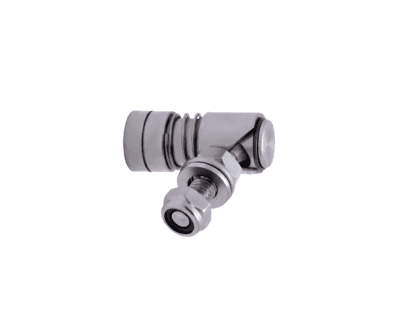

The K9 is a stainless steel quick release ball joint designed specifically for connecting Universal Cables to an engine.

It features a 10-32 UNF female thread with a 6 mm stud, providing a compact connection between the control cable and engine mechanism. The ball joint is suitable for EC-033 and EC-133 series cables.

Manufactured from 300 Series Stainless Steel with a polished finish, the K9 uses a quick-release housing that slides back against an external spring to release the stud.

The K9 is suitable for applications requiring a stainless steel cable-to-engine connection and can be used in mechanical control systems involving push-pull, throttle and other cable-operated mechanisms.

Specifications:

• SKU: K9
• Product type: Stainless steel quick release ball joint
• Female thread: 10-32 UNF (3/16")
• Stud: 6 mm
• Housing material: 300 Series Stainless Steel
• Finish: Polished
• Quick-release mechanism: External spring
• Suitable cables: EC-033 and EC-133 series

Also known as: Removable ball joint, detachable ball joint.

Application: Connecting Universal Cables to an engine.

Application note: Confirm cable series, thread and stud dimensions before ordering to ensure compatibility with the existing control system.

FAQs

What is the K9 ball joint used for?
The K9 is designed for connecting Universal Cables to an engine.

What cables does the K9 fit?
The K9 is specified as suitable for EC-033 and EC-133 series cables.

What thread does the K9 use?
The K9 has a 10-32 UNF (3/16") female thread.

What size is the stud on the K9?
The K9 has a 6 mm stud.

What is the K9 made from?
The K9 housing is manufactured from 300 Series Stainless Steel and has a polished finish.

Is the K9 a quick-release ball joint?
Yes. The housing slides back against an external spring to release the stud.
