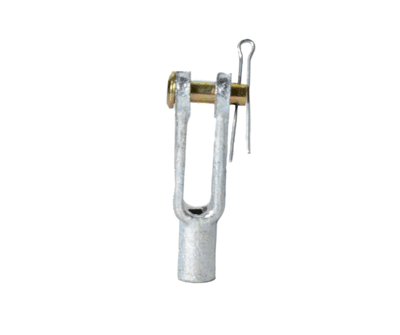

Forged Clevis 3/16 x 3/16 inch Pin Plated Steel (21410)

To Suit: All 10-32 (3/16” unf) threads used 3/16" pin
Product Name: Forged Clevis Thread: 10-32 (3/16")
Pin Hole Diameter: 3/16"
Housing Material: Steel
Finish: Plated Zinc Yellow
Base of thread to centre of hole: 1.563"
Common Accessories: Push-pull cables, shifter cables, throttle cables

This forged steel clevis is designed for connecting 10-32 threaded push-pull control cables to levers, linkages and other mechanical control components. The 3/16" pin hole provides a compact connection point for applications requiring an imperial threaded clevis.

Manufactured from steel with a plated zinc yellow finish, this clevis is suitable for a range of industrial control and light linkage applications where a secure mechanical connection is required.

The 21410 clevis has a 10-32 (3/16" UNF) thread, a 3/16" pin hole and a 1.563" distance from the base of the thread to the centre of the pin hole. It is commonly used with push-pull cables, shifter cables and throttle cables.

When selecting a clevis, it is important to match the thread, pin diameter, dimensions and application requirements. Always ensure the selected clevis is appropriate for the required load and operating conditions.

What thread does the 21410 forged clevis use?
The 21410 uses a 10-32 (3/16" UNF) thread.

What size pin does this clevis use?
This clevis has a 3/16" pin hole.

What are these clevises used for?
They are commonly used with push-pull control cables, shifter cables, throttle cables and light mechanical linkage assemblies.

Is the 21410 clevis suitable for any control cable?
No. The cable thread and application must be compatible with the clevis. The load requirements of the application should also be considered.
