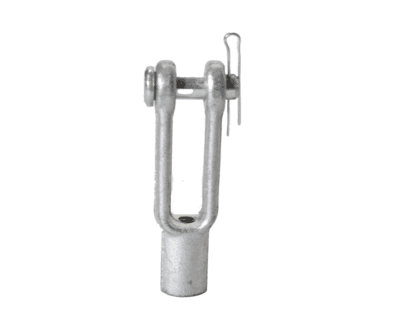

Forged Clevis 3/16 inch x 1/4 inch Pin (21412)

To Suit: All 10-32 (3/16” unf) threads uses ¼” pin
Product Name: Forged Clevis
Thread: 10-32 (3/16")
Pin Hole Diameter: 1/4"
Housing Material: Steel
Finish: Plated Zinc Clear
Base of thread to centre of hole: 2.00"
Common Accessories: Push-pull cables, shifter cables, throttle cables

The 21412 forged clevis provides a practical connection between a 10-32 threaded control cable and a mechanical lever or linkage. It is manufactured from steel and features a plated zinc clear finish for a durable general-purpose connection.

This imperial clevis uses a 10-32 (3/16" UNF) thread and accommodates a 1/4" pin, making it different from the smaller 21410 clevis while retaining the same 10-32 cable thread.

With a 2.00" distance from the base of the thread to the centre of the pin hole, the 21412 is suited to applications involving push-pull control cables, shifter cables, throttle cables and light linkage assemblies.

The correct clevis should always be selected according to the cable thread, pin diameter, available space and required load.

What thread does the 21412 clevis have?
The 21412 has a 10-32 (3/16" UNF) thread.

What is the pin hole diameter?
The pin hole is 1/4" in diameter.

What control cables can this clevis be used with?
It is commonly used with push-pull control cables, shifter cables and throttle cables where the cable thread is compatible.

What is the difference between the 21410 and 21412 clevis?
Both use a 10-32 thread, but the 21410 has a 3/16" pin hole while the 21412 has a larger 1/4" pin hole.
