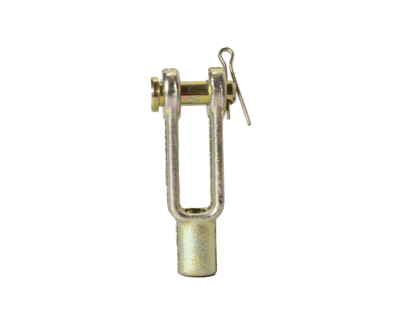

Clevis 3/16 inch x 5/16 inch Pin (21414)

To Suit: All 10-32 (3/16”unf) threads uses 5/16”pin
Product Name: Forged Clevis
Thread: 10-32 (3/16")
Pin Hole Diameter: 5/16"
Housing Material: Steel
Finish: Plated Zinc Clear
Base of thread to centre of hole: 2.250"
Common Accessories: Push-pull cables, shifter cables, throttle cables

The 21414 forged clevis is an imperial threaded cable fitting designed for applications requiring a 10-32 (3/16" UNF) thread and larger 5/16" pin connection.

Manufactured from steel with a plated zinc clear finish, this clevis is designed for use with push-pull control cables, shifter cables, throttle cables and light linkage assemblies.

The 21414 features a 5/16" pin hole and a 2.250" distance from the base of the thread to the centre of the hole. This makes it a useful option where a larger connection pin is required while retaining a compact 10-32 threaded cable connection.

When replacing an existing clevis, check both the cable thread and pin diameter rather than selecting a fitting based on appearance alone.

What thread does the 21414 clevis use?
The 21414 uses a 10-32 (3/16" UNF) thread.

What size pin does the 21414 use?
It uses a 5/16" pin.

What is the 21414 clevis used for?
It is designed for use with compatible push-pull control cables, throttle cables, shifter cables and light linkage assemblies.

How does the 21414 differ from the 21412?
Both have a 10-32 thread, but the 21414 has a 5/16" pin hole compared with the 1/4" pin hole on the 21412.
