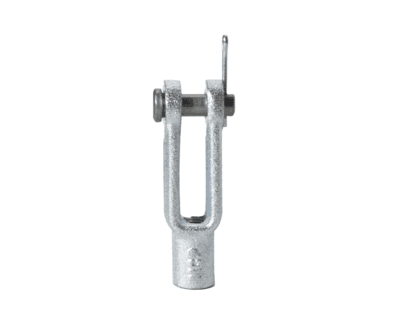

Forged Clevis 1/4 inch x 1/4 inch Pin (21416)

To Suit: All ¼ - 28 unf thread uses ¼” pin
Product Name: Forged Clevis
Thread: 1/4-28
Pin Hole Diameter: 1/4"
Housing Material: Steel
Finish: Plated Zinc Clear
Base of thread to centre of hole: 2.000"
Common Accessories: Push-pull cables, shifter cables, throttle cables

The 21416 forged clevis is designed for control cable applications using a 1/4-28 UNF threaded cable connection. It provides a secure mechanical connection between the threaded control cable and a lever, actuator or linkage.

Manufactured from steel with a plated zinc clear finish, the clevis incorporates a 1/4" pin hole and has a 2.000" distance from the base of the thread to the centre of the hole.

This imperial clevis is commonly used with push-pull cables, shifter cables and throttle cables, as well as suitable light mechanical linkage assemblies.

The 21416 is particularly useful when replacing or assembling a control cable where a 1/4-28 threaded connection and 1/4" linkage pin are required.

What thread does the 21416 forged clevis use?
It uses a 1/4-28 UNF thread.

What size pin fits the 21416?
The clevis has a 1/4" pin hole.

What cables can use this clevis?
It is commonly used with compatible push-pull control cables, throttle cables and shifter cables.

Why is thread size important when selecting a clevis?
The clevis thread must match the threaded end of the control cable. An incorrect thread will not provide a suitable mechanical connection.
