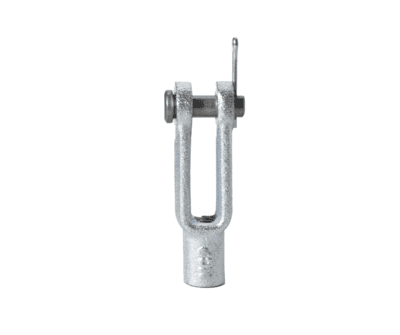

Forged Clevis 1/4 inch x 5/16 inch pin (21418)

To Suit: All ¼ - 28 unf thread uses 5/16” pin
Product Name: Forged Clevis
Thread: 1/4-28
Pin Hole Diameter: 5/16"
Housing Material: Steel
Finish: Plated Zinc Clear
Base of thread to centre of hole: 2.25"
Common Accessories: Push-pull cables, shifter cables, throttle cables

The 21418 Forged Clevis is an imperial threaded control cable fitting designed for applications requiring a 1/4-28 UNF threaded connection and 5/16" pin hole.

Manufactured from steel with a plated zinc clear finish, this clevis provides a secure mechanical connection between a compatible push-pull control cable and a lever, linkage or other mechanical control component.

The 21418 features a 1/4-28 UNF thread, a 5/16" pin hole and a 2.25" distance from the base of the thread to the centre of the pin hole. These dimensions make it important to check both the cable thread and the available installation space when selecting a replacement clevis.

Common applications include push-pull control cables, throttle cables and shifter cables, as well as suitable light linkage assemblies.

The 21418 is particularly useful where a 5/16" linkage pin is required with a 1/4-28 threaded cable connection. It sits within the Industrial & Cable Group range of imperial plated steel clevises, providing different combinations of thread sizes and pin diameters to suit a variety of control cable installations.

When selecting a clevis, always confirm the thread size, thread type, pin diameter and installation dimensions. The clevis must also be appropriate for the load and operating conditions of the application.

What thread does the 21418 clevis use?
The 21418 uses a 1/4-28 UNF thread.

What size pin does the 21418 use?
The clevis has a 5/16" pin hole.

What is the 21418 clevis used for?
It is commonly used with compatible push-pull control cables, throttle cables, shifter cables and light linkage assemblies.

What is the difference between the 21416 and 21418 clevises?
Both use a 1/4-28 UNF thread. The 21416 has a 1/4" pin hole, while the 21418 has a larger 5/16" pin hole.

What is the difference between the 21418 and 21420?
Both provide a larger pin connection, but the 21418 uses a 1/4-28 UNF thread with a 5/16" pin, while the 21420 uses a 1/4-28 UNF thread with a 3/8" pin.

How do I know if this clevis will fit my control cable?
Check that your cable has a compatible 1/4-28 UNF threaded end and that your existing linkage or lever accepts a 5/16" pin. Also check the required installation dimensions and application load.
