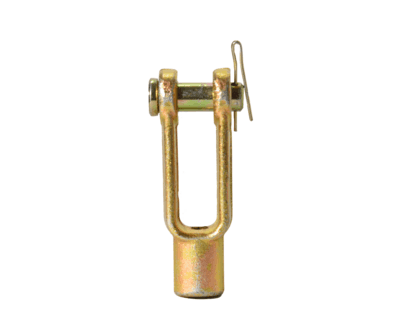

Forged Clevis 1/4 inch x 3/8 inch Pin (21420)

To Suit: All ¼ x 28” unf threads uses 3/8”pin
Product Name: Forged Clevis
Thread: 1/4-28
Pin Hole Diameter: 3/8"
Housing Material: Steel
Finish: Plated Zinc Clear
Base of thread to centre of hole: 2.500"
Common Accessories: Push-pull cables, shifter cables, throttle cables

The 21420 forged clevis provides a larger 3/8" pin connection while retaining a 1/4-28 UNF threaded connection for compatible push-pull control cables.

Manufactured from steel with a plated zinc clear finish, the 21420 is suited to applications where a larger linkage pin is required. It has a 3/8" pin hole and a 2.500" distance from the base of the thread to the centre of the pin hole.

The clevis is commonly used with push-pull control cables, shifter cables, throttle cables and light linkage assemblies.

When selecting a replacement clevis, compare the cable thread, pin diameter and installation dimensions to ensure the fitting is suitable for the application.

What thread does the 21420 clevis use?
The 21420 uses a 1/4-28 UNF thread.

What size pin does the 21420 use?
It uses a 3/8" pin.

Why choose a 3/8" pin clevis?
A larger pin connection may be required where the mating linkage or lever is designed for a 3/8" pin.

What is the difference between the 21416 and 21420?
Both use a 1/4-28 UNF thread, but the 21416 has a 1/4" pin hole while the 21420 has a 3/8" pin hole.
