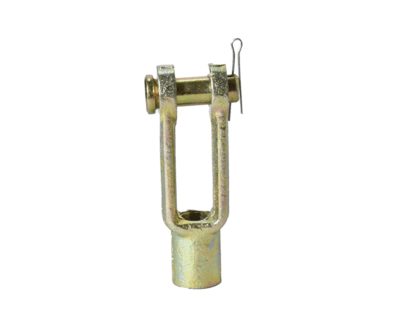

Forged Clevis Pin 5/16-24 RH x 3/8" (21424)

To Suit: All 5/16- 24 unf thread uses 3/8” pin
Product Name: Forged Clevis
Thread: 5/16-24
Pin Hole Diameter: 3/8"
Housing Material: Steel
Finish: Plated Zinc Clear
Base of thread to centre of hole: 2.250"
Common Accessories: Push-pull cables, shifter cables, throttle cables

The 21424 forged clevis is designed for control cable applications requiring a 5/16-24 UNF right-hand threaded connection and 3/8" pin.

Manufactured from steel with a plated zinc clear finish, this clevis provides a larger linkage connection for suitable push-pull control cables, throttle cables, shifter cables and light mechanical linkages.

The 21424 has a 5/16-24 thread, 3/8" pin hole and a 2.250" distance from the base of the thread to the centre of the hole.

The right-hand thread specification is particularly important when identifying a replacement component. Always check the thread direction, thread size and pin diameter before ordering.

What thread does the 21424 clevis use?
The 21424 uses a 5/16-24 UNF right-hand thread.

What size pin does the 21424 use?
It has a 3/8" pin hole.

What does RH mean in 5/16-24 RH?
RH means right-hand thread, which is the standard tightening direction for a conventional right-hand threaded connection.

Why should I check thread direction before ordering?
The thread direction must match the threaded cable or component being connected. Checking this prevents selecting an incompatible replacement.
