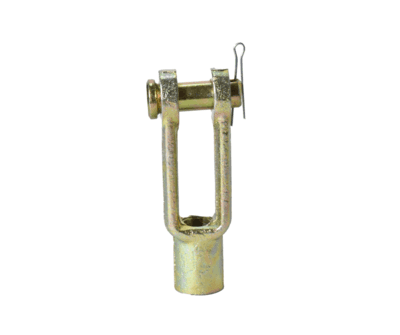

Forged Clevis - Plated Steel 3/8" x 3/8" (21426)

To Suit: All 3/8 - 24” unf threads uses 3/8” pin
Product Name: Forged Clevis
Thread: 3/8-24
Pin Hole Diameter: 3/8"
Housing Material: Steel
Finish: Plated Zinc Clear
Base of thread to centre of hole: 2.500"
Common Accessories: Push-pull cables, shifter cables, throttle cables

The 21426 forged clevis is a larger imperial control cable fitting featuring a 3/8-24 UNF thread and 3/8" pin hole.

Manufactured from steel with a plated zinc clear finish, the clevis is designed for use with compatible push-pull control cables, shifter cables, throttle cables and light linkage assemblies.

The 21426 has a 2.500" distance from the base of the thread to the centre of the pin hole, providing useful dimensional information when matching a replacement fitting to an existing installation.

As with all control cable fittings, thread compatibility and application requirements should be checked before installation.

What thread does the 21426 clevis use?
The 21426 uses a 3/8-24 UNF thread.

What size pin does the 21426 use?
It uses a 3/8" pin.

What is the 21426 commonly used for?
It is designed for compatible push-pull control cables and light linkage applications, including suitable throttle and shifter cable installations.

What should I check before ordering a 21426?
Check the cable thread, pin diameter and installation dimensions to make sure the clevis matches the existing or planned control system.
