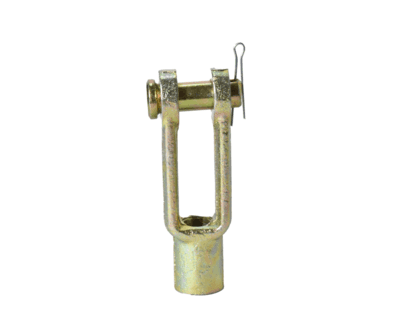

Forged Clevis - Plated Steel 1/2" x 1/2" (21428)

To Suit: All 1/2"-20 unf threads uses 1/2" pin
Product Name: Forged Clevis
Thread: 1/2" - 20 unf
Pin Hole Diameter: 1/2"
Housing Material: Steel
Finish: Plated Zinc Clear
Base of thread to centre of hole: 3.00"
Common Accessories: Push-pull cables, shifter cables, throttle cables

The 21428 forged clevis is the largest fitting in this Imperial Plated Steel range, providing a 1/2-20 UNF threaded connection and 1/2" pin hole.

Manufactured from steel with a plated zinc clear finish, it is designed for compatible push-pull control cables and light linkage assemblies where a larger threaded cable connection and linkage pin are required.

The 21428 has a 3.00" distance from the base of the thread to the centre of the pin hole, making this measurement important when checking installation clearance and matching an existing clevis.

This clevis can be used with suitable push-pull, throttle and shifter cable applications where the cable thread and mechanical load requirements are compatible.

What thread does the 21428 clevis use?
The 21428 uses a 1/2-20 UNF thread.

What size pin does the 21428 use?
It has a 1/2" pin hole.

What is the 21428 used for?
It is designed for compatible push-pull cables and light linkage assemblies, including suitable throttle and shifter cable applications.

What dimensions should I check before buying?
Check the 1/2-20 thread, 1/2" pin diameter and the 3.00" distance from the base of the thread to the centre of the pin hole.
