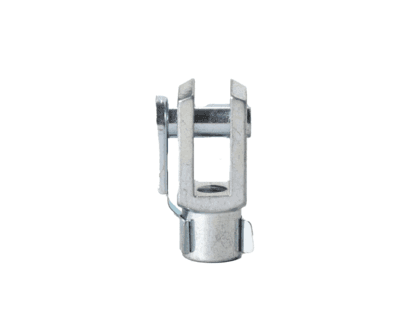

Clevis MTC-5S M5 x 0.80 Long (21434)

M5 x 0.80 Short Metric Clevis for Control Cables

The MTC-5S is a short M5 x 0.80 metric clevis designed for connecting push-pull control cables to levers and light mechanical linkage assemblies.

Machined from steel and finished with clear zinc plating, it provides a compact threaded connection for applications where installation space or linkage geometry makes a shorter clevis preferable.

The clevis has a 5mm pin hole and measures 20mm from the base of the thread to the centre of the hole.

Product specifications:

• Clevis type: MTC-5S
• Thread: M5 x 0.80
• Pin hole diameter: 5mm
• Material: Steel
• Finish: Clear zinc plated
• Base of thread to centre of hole: 20mm
• Typical applications: Push-pull control cables, shifter cables, throttle cables, go-kart linkages and brake linkages

For replacement applications, compare the original clevis dimensions before ordering, particularly the thread, pin hole and distance to the hole centre.

FAQs

What thread does the MTC-5S clevis have?
The MTC-5S uses an M5 x 0.80 metric thread.

What is the pin hole size?
The pin hole is 5mm in diameter.

What is the difference between the MTC-5S and MTC-5L?
Both use an M5 x 0.80 thread and 5mm pin hole. The MTC-5S has a 20mm distance from the thread base to the hole centre, while the MTC-5L has a 30mm distance.

Where can an M5 clevis be used?
These clevises are commonly used with push-pull control cables and light mechanical linkages, including throttle, shifter, brake and go-kart applications.
