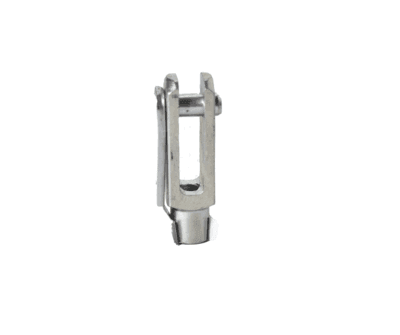

Clevis MTC-5L M5 x 0.80 Long (21436)

M5 x 0.80 Long Metric Clevis for Push-Pull Cables

The MTC-5L is a long metric clevis with an M5 x 0.80 thread, designed for use with push-pull control cables and light mechanical linkage assemblies.

Machined from steel and finished with clear zinc plating, this clevis provides a durable threaded connection between a control cable or linkage and the lever or mechanism being operated.

The long configuration provides 30mm from the base of the threaded section to the centre of the clevis pin hole, making it suitable where additional reach is required compared with a shorter clevis.

Product specifications:

• Clevis type: MTC-5L
• Thread: M5 x 0.80
• Pin hole diameter: 5mm
• Material: Steel
• Finish: Clear zinc plated
• Base of thread to centre of hole: 30mm
• Typical applications: Push-pull control cables, shifter cables, throttle cables, go-kart linkages and brake linkages

When replacing an existing clevis, check the thread size, thread pitch, pin diameter and required reach before ordering. Clevises must also be selected for the load requirements of the application.

FAQs

What thread size is the MTC-5L clevis?
The MTC-5L has an M5 x 0.80 metric thread.

What size pin does the MTC-5L use?
The clevis has a 5mm diameter pin hole.

How long is the MTC-5L clevis?
The distance from the base of the thread to the centre of the pin hole is 30mm.

What is the MTC-5L clevis used for?
It is designed for push-pull control cables and light mechanical linkages, including shifter, throttle, go-kart and brake linkage applications.

What is the MTC-5L made from?
It is a machined steel clevis with a clear zinc-plated finish.
