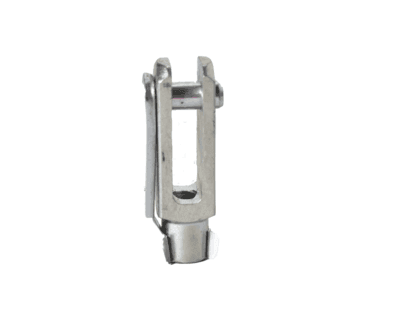

Clevis MTC-6L M6 x 1.00 Long (21442)

M6 x 1.00 Long Metric Clevis for Push-Pull Control Cables

The MTC-6L is a long M6 x 1.00 machined steel clevis designed for connecting push-pull control cables and light mechanical linkages.

The clear zinc-plated steel construction provides a practical connection between a threaded cable end or linkage rod and the lever or mechanism being controlled.

Its long configuration provides 36mm from the base of the thread to the centre of the 6mm pin hole, making it suitable where additional reach is required.

Product specifications:

• Clevis type: MTC-6L
• Thread: M6 x 1.00
• Pin hole diameter: 6mm
• Material: Steel
• Finish: Clear zinc plated
• Base of thread to centre of hole: 36mm
• Applications: Push-pull cables, shifter cables, throttle cables, go-kart linkages and brake linkages

FAQs

What thread size is the MTC-6L?
The MTC-6L uses an M6 x 1.00 metric thread.

What size pin does it use?
It has a 6mm pin hole.

How much reach does the long M6 clevis provide?
The distance from the base of the thread to the centre of the pin hole is 36mm.

What applications is the M6 long clevis suitable for?
It is designed for push-pull control cables and light linkage assemblies, including throttle, shifter, brake and go-kart applications.
