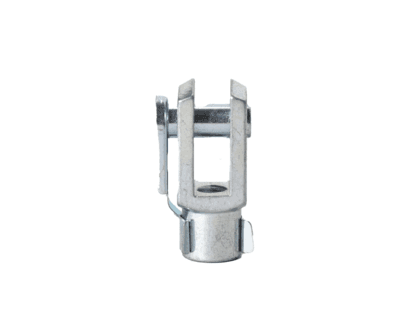

Clevis MTC-6S M6 x 1.00mm (21444)

M6 x 1.00 Short Metric Clevis for Control Cables

The MTC-6S is a short M6 x 1.00 metric clevis designed for connecting threaded push-pull control cables to levers and light mechanical linkages.

Its compact configuration is useful where available installation space is limited or where a shorter connection is required. The clevis is machined from steel and finished with clear zinc plating.

The MTC-6S features a 6mm pin hole and a 24mm distance from the base of the thread to the centre of the hole.

Product specifications:

• Clevis type: MTC-6S
• Thread: M6 x 1.00
• Pin hole diameter: 6mm
• Material: Steel
• Finish: Clear zinc plated
• Base of thread to centre of hole: 24mm
• Applications: Push-pull cables, shifter cables, throttle cables, go-kart linkages and brake linkages

FAQs

What thread does the MTC-6S use?
The MTC-6S uses an M6 x 1.00 metric thread.

What is the pin hole diameter?
The pin hole is 6mm.

What is the difference between the MTC-6S and MTC-6L?
Both use an M6 x 1.00 thread and 6mm pin hole. The short MTC-6S has 24mm from the thread base to the hole centre, while the long MTC-6L has 36mm.

What is an M6 clevis used for?
It can be used to connect push-pull control cables and light mechanical linkages to levers or other moving components.
