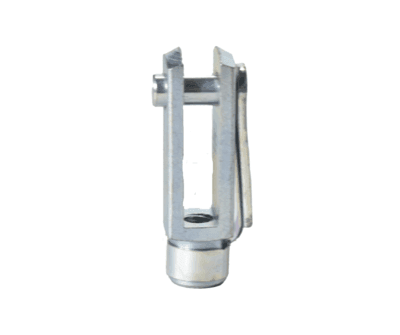

Clevis MTC-8L-ZCHF - 8mm Long (21448)

M8 x 1.25 Long Metric Clevis for Control Cables

The MTC-8L is a long M8 x 1.25 metric clevis for connecting threaded push-pull control cables to levers and light mechanical linkages.

The machined steel construction and clear zinc-plated finish make it suitable for a range of general industrial and mechanical control applications.

The long configuration provides 48mm from the base of the thread to the centre of the 8mm pin hole, providing considerably more reach than the MTC-8S version.

Product specifications:

• Clevis type: MTC-8L
• Thread: M8 x 1.25
• Pin hole diameter: 8mm
• Material: Steel
• Finish: Clear zinc plated
• Base of thread to centre of hole: 48mm
• Applications: Push-pull cables, shifter cables, throttle cables, go-kart linkages and brake linkage

FAQs

What thread does the MTC-8L use?
The MTC-8L uses an M8 x 1.25 metric thread.

What is the pin hole diameter?
The pin hole is 8mm.

How long is the MTC-8L?
The distance from the base of the thread to the centre of the pin hole is 48mm.

What is the difference between the MTC-8S and MTC-8L?
Both have an M8 x 1.25 thread and 8mm pin hole. The MTC-8S has a 32mm reach, while the MTC-8L has a 48mm reach.
