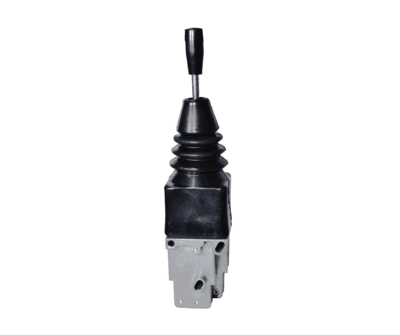

Remote Valve Control (XVL-670)

REMOTE VALVE CONTROL - DUAL

Key Features:

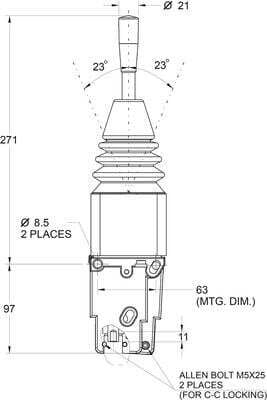

• Aluminium body, maximum load 40 kgf, stackable controls

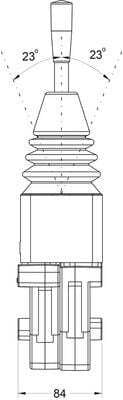

• Offers a maximum of 30mm travel
• Suitable for use on: Functions where hydraulic valves require option for remote situations and designed for use where multiple valve banks are required.

The XVL-670 Remote Valve Control is engineered to provide precise mechanical control of hydraulic spool valves from a remote operator position. Ideal where hydraulic valve banks are mounted away from the operator, the XVL-670 offers smooth, dependable performance for a wide range of machinery.

Suitable for industrial, agricultural and mobile hydraulic systems, the XVL-670 allows operators to control hydraulic functions safely while improving machine ergonomics and reducing installation complexity.

Typical applications include:

• Agricultural equipment
• Hydraulic power packs
• Construction machinery
• Mobile plant
• Forestry equipment
• Materials handling equipment
• Municipal vehicles
• Custom hydraulic systems

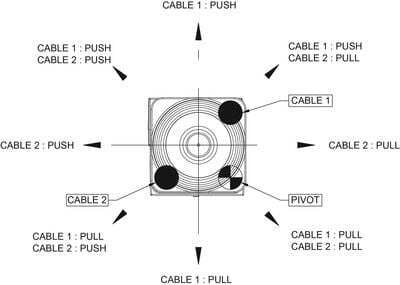

Compatible with Multiflex Remote Valve Control cables, the XVL-670 provides a durable mechanical solution where reliability and precise valve control are essential.

Features

• Offers a maximum of 30mm travel
• Durable mechanical construction
• Smooth hydraulic valve operation
• Compact installation
• Suitable for remote valve control
• Reliable industrial performance
• Compatible with Multiflex RVC cable systems
• Designed for mobile hydraulic applications

RVC Cables to suit this Control:

• 420050-XXXX RVC cable with clamp hub
• 422050-XXXX RVC cable with bulkhead hub
• 424045-XXXX RVC cable with M16 universal hub

(XXXX is overall length in centimetres)
