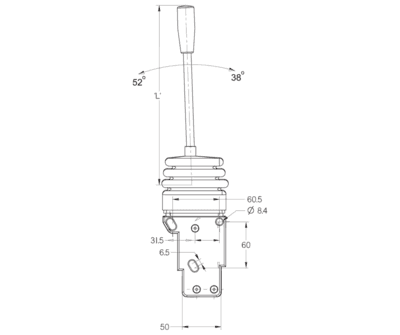

Remote Valve Control (XVL-900)

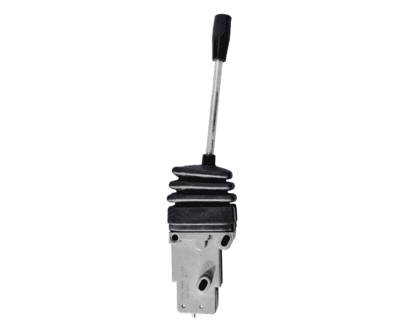

XVL-900 Heavy Duty Remote Valve Control

The XVL-900 Remote Valve Control is engineered for heavy-duty hydraulic applications requiring smooth, reliable remote valve operation. Built with a heavy-duty aluminium body, the XVL-900 is designed to withstand demanding industrial environments while delivering accurate mechanical control.

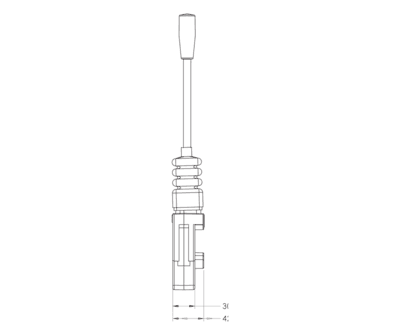

Capable of handling loads up to 50 kgf and offering 45 mm cable travel, the XVL-900 is suitable for operating larger hydraulic spool valves commonly found on construction, agricultural and industrial machinery. The compact 42 mm wide body allows multiple controls to be stacked together, providing efficient control of several hydraulic circuits from a single operator location.

The XVL-900 is commonly used on:

• Excavators
• Agricultural machinery
• Hydraulic power packs
• Cranes
• Material handling equipment
• Forestry machinery
• Mobile plant
• Custom hydraulic installations

Three cable configurations are available, allowing the control to be matched to a wide variety of installation requirements:

• Clamp Hub (420050)
• Bulkhead Hub (422050)
• Universal M16 Hub (424045)

The XVL-900 is also designed as a direct replacement for many competing remote valve control systems, simplifying upgrades and maintenance.

Features

• Heavy-duty aluminium construction
• Maximum operating load of 50 kgf
• 45 mm cable travel
• Direct replacement for competitor systems
• Three cable configurations available
• Stackable control design
• Compact 42 mm body
• Suitable for demanding hydraulic applications

Cables to suit this unit:

• 420050-XXXX RVC cable with clamp hub
• 422050-XXXX RVC cable with bulkhead hub
• 424045-XXXX RVC cable with M16 universal hub

(XXXX is overall length in centimetres)

Accepts Morse cables 206366, 206365, 292959
