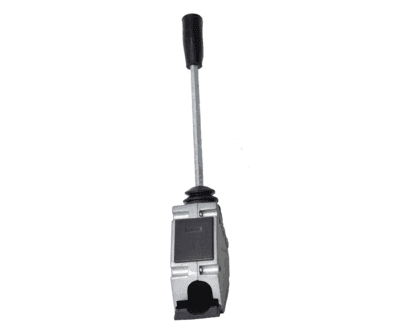

Light Duty Valve Control (XVL-920)

The XVL-920 Remote Valve Control provides a simple and reliable method of remotely operating hydraulic spool valves where direct access is impractical. Manufactured with a lightweight aluminium body, the XVL-920 delivers dependable performance while remaining compact enough for installations where space is limited.

Designed for light-duty applications, the XVL-920 produces up to 30 mm of cable travel with a maximum operating load of 40 kgf, making it suitable for many hydraulic functions found on industrial, agricultural and mobile equipment. The slim 42 mm body allows multiple controls to be stacked together, enabling operators to manage several hydraulic functions from a single control station.

The XVL-920 is commonly installed on:

• Hydraulic power packs
• Agricultural machinery
• Construction equipment
• Material handling equipment
• Vehicle-mounted hydraulic systems
• Industrial machinery
• Mobile plant
• Custom control consoles

Designed for use with Multiflex Remote Valve Control cables (Part No. 428050-XXXX), the system provides smooth mechanical operation while eliminating the need to mount hydraulic valves directly beside the operator.

Features

• Lightweight aluminium construction
• Maximum operating load of 40 kgf
• 30 mm cable travel

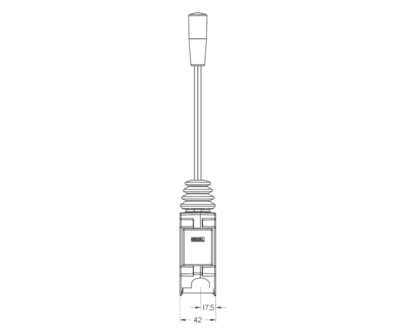

• Compact 42 mm wide body
• Stackable design for multiple valve banks
• Smooth mechanical operation
• Designed for remote hydraulic valve control
• Compatible with Multiflex 428050 series cables
