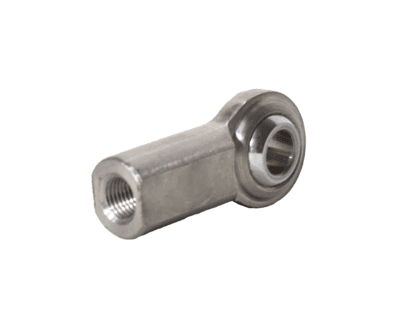

Stainless Steel Female Spherical Rod End 5/16" x 5/16" (10206)
Stainless Steel Spherical Rod Ends fit 5/16”- 24 unf
To Suit: All 5/16”- 24 RH threads
PURCHASE 2-4 OF THIS ITEM FOR A 10% DISCOUNT
PURCHASE 5 OF THIS ITEM FOR A 20% DISCOUNT
Product Name: Female Spherical Rod End
Thread: Female 5/16-24 x 0.750″ deep
Ball ID: 5/16″
Housing Material: 300 Series Stainless Steel
Finish: Bright Polish
Ball Finish: Stainless Steel
Bearing Race: PTFE
Housing Width: 0.875″
Base of Rod End to Center of Ball: 1.375″
Ball Thickness: 0.437″
Ultimate Static Load Rating: 2,465 lbs
Common Other Names for this Product: heim joint, rose joint
Application: This size rod end is often used in hand or foot actuated push-pull linkages
