Plated Steel MPF Rod End - 3/16" x 3/16" (10404)

Plated Steel MPF Rod End – 3/16" x 3/16"

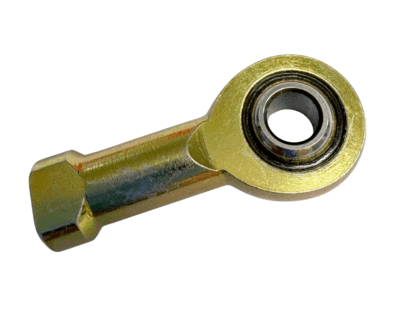

The 10404 Plated Steel MPF Rod End is a compact female spherical rod end designed for 3/16" mechanical linkage applications.

Featuring a 10-32 UNF right-hand female thread, 3/16" ball bore, carbon steel housing and nylon bearing race, this rod end allows controlled angular movement while maintaining a secure mechanical connection.

The zinc yellow plated housing and hard chrome plated ball provide a durable finish suitable for general industrial and mechanical applications.

Commonly referred to as a heim joint or rose joint, this 3/16" rod end is well suited to hand-operated and foot-operated push-pull linkages, mechanical controls and other compact linkage systems.

Specifications:

• Female Thread: 10-32 UNF RH
• Thread Depth: 0.562"
• Ball ID: 3/16"
• Housing Material: Carbon Steel
• Housing Finish: Zinc Yellow Plated
• Ball Finish: Hard Chrome Plated
• Bearing Race: Nylon
• Housing Width: 0.250"
• Base to Ball Centre: 1.062"
• Ball Thickness: 0.312"

Always confirm thread size, ball bore, available installation space and load requirements before selecting a rod end.

FAQs

What thread does the 10404 rod end have?
The 10404 has a female 10-32 UNF right-hand thread with a thread depth of 0.562".

What size bolt fits through the ball of this rod end?
The ball has a 3/16" internal diameter.

What is a nylon race rod end?
A nylon race rod end uses a nylon bearing material between the ball and housing to support smooth angular movement within the linkage.

Is this also called a heim joint or rose joint?
Yes. Spherical rod ends are commonly referred to as heim joints or rose joints.
