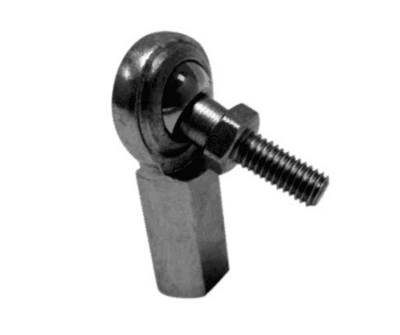

Plated Steel MPF Rod End - 3/16" x 3/16" (10405)

Plated Steel MPF Rod End – 3/16" x 3/16" with Stud

The 10405 Plated Steel MPF Rod End is designed for compact mechanical linkage applications requiring a 3/16" spherical connection and 10-32 UNF right-hand threading.

Constructed with a carbon steel housing, zinc yellow plating, hard chrome plated ball and nylon bearing race, this spherical rod end provides controlled movement and helps accommodate angular misalignment within a mechanical linkage.

The unit incorporates a 10-32 UNF female thread and a 10-32 UNF stud, making it suitable for linkage arrangements where the stud configuration is required.

Common applications include hand and foot actuated controls, throttle and mechanical linkage systems, push-pull cable installations and other light mechanical actuation applications.

Specifications:

• Female Thread: 10-32 UNF RH
• Thread Depth: 0.562"
• Ball ID: 3/16"
• Stud Thread: 10-32 UNF RH
• Stud Length to Ball Centre: 0.874"
• Housing Material: Carbon Steel
• Finish: Zinc Yellow Plated
• Ball Finish: Hard Chrome Plated
• Bearing Race: Nylon
• Housing Width: 0.250"
• Base to Ball Centre: 1.062"
• Ball Thickness: 0.312"

Check both the female thread and stud configuration to ensure compatibility with your existing linkage.

FAQs

Does the 10405 have both a female thread and stud?
Yes. The rod end has a 10-32 UNF right-hand female thread and a 10-32 UNF right-hand stud.

How long is the stud?
The stud length to the centre of the ball is 0.874".

What applications suit this rod end?
It is commonly suited to compact hand-operated, foot-operated and push-pull mechanical linkage applications.

How do I know if I need 10404 or 10405?
The main difference is the configuration. Check whether your installation requires only the female threaded rod end or a version incorporating the stud.
