Plated Steel MPF Rod End - 1/4" x 1/4" (10407)

Plated Steel MPF Rod End – 1/4" x 1/4" with Stud

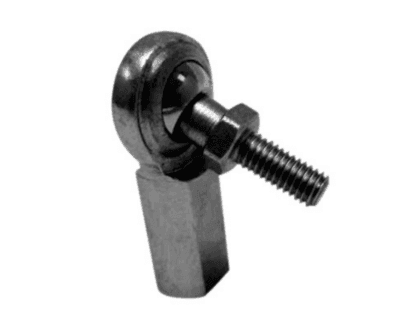

The 10407 Plated Steel MPF Rod End is a 1/4" spherical linkage component incorporating both a 1/4-28 UNF right-hand female thread and 1/4-28 UNF stud.

Designed for mechanical control and linkage applications, the spherical ball allows the connection to accommodate controlled angular movement and minor alignment changes.

The rod end features a carbon steel housing with zinc yellow plating, a hard chrome plated ball and nylon bearing race.

This configuration is particularly useful where a stud connection is required as part of the linkage arrangement. Common applications include mechanical controls, hand and foot actuated linkages, throttle systems and push-pull cable installations.

Specifications:

• Female Thread: 1/4-28 UNF RH
• Thread Depth: 0.750"
• Ball ID: 1/4"
• Stud Thread: 1/4-28 UNF RH
• Stud Length to Ball Centre: 1.031"
• Housing Material: Carbon Steel
• Finish: Zinc Yellow Plated
• Ball Finish: Hard Chrome Plated
• Bearing Race: Nylon
• Housing Width: 0.276"
• Base to Ball Centre: 1.312"
• Ball Thickness: 0.375"

FAQs

What is the difference between 10406 and 10407?
Both are 1/4" spherical rod ends with 1/4-28 UNF threading. The 10407 includes the specified stud configuration.

What thread does the stud use?
The stud has a 1/4-28 UNF right-hand thread.

What is the ball bore size?
The spherical ball has a 1/4" internal diameter.

Where are rod ends commonly used?
Rod ends are commonly used in mechanical linkages where motion must be transferred while allowing angular movement.
