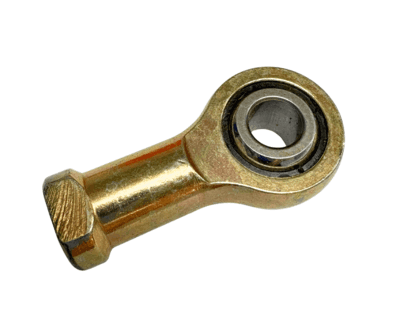

The 10408 Plated Steel MPF Rod End is a female spherical rod end designed for mechanical linkage systems requiring a 5/16" ball bore and 5/16-24 UNF right-hand thread.

The carbon steel housing is zinc yellow plated for general corrosion protection, while the ball is hard chrome plated. A nylon bearing race supports the movement of the spherical ball within the housing.

This type of rod end is commonly used in mechanical actuation systems where the connection needs to transmit push or pull movement while accommodating angular movement between components.

The 10408 may also be referred to as a heim joint or rose joint and is suitable for appropriately specified industrial, vehicle, machinery and mechanical control applications.

Specifications:

• Female Thread: 5/16-24 UNF RH
• Thread Depth: 0.750"
• Ball ID: 5/16"
• Housing Material: Carbon Steel
• Housing Finish: Zinc Yellow Plated
• Ball Finish: Hard Chrome Plated
• Bearing Race: Nylon
• Housing Width: 0.344"
• Base to Ball Centre: 1.375"
• Ball Thickness: 0.437"

FAQs

What thread does the 10408 rod end use?
The 10408 has a female 5/16-24 UNF right-hand thread.

What size is the ball bore?
The ball has a 5/16" internal diameter.

What material is the housing made from?
The housing is carbon steel with a zinc yellow plated finish.

Is this rod end suitable for industrial machinery?
It may be suitable for industrial and mechanical linkage applications where its dimensions and load capabilities match the system requirements.
