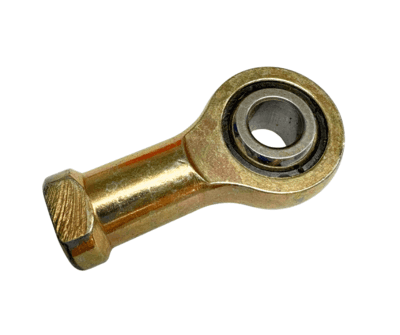

Plated Steel MPF Rod End - 3/8" x 3/8" (10410)

Plated Steel MPF Rod End – 3/8" x 3/8"

The 10410 Plated Steel MPF Rod End is a female spherical rod end suited to mechanical linkage systems requiring a 3/8" ball bore and 3/8-24 UNF right-hand thread.

Manufactured with a carbon steel housing and zinc yellow plated finish, this rod end incorporates a hard chrome plated spherical ball and nylon bearing race.

The spherical design allows the linkage connection to move through an angle while transferring mechanical movement between connected components. This makes rod ends useful in push-pull controls, machinery linkages, hand and foot controls and other mechanical actuation systems.

Also known as a heim joint or rose joint, the 10410 should be selected only after confirming the correct thread, bore size, mounting arrangement and load requirements.

Specifications:

• Female Thread: 3/8-24 UNF RH
• Thread Depth: 0.937"
• Ball ID: 3/8"
• Housing Material: Carbon Steel
• Housing Finish: Zinc Yellow Plated
• Ball Finish: Hard Chrome Plated
• Bearing Race: Nylon
• Housing Width: 0.406"
• Base to Ball Centre: 1.625"
• Ball Thickness: 0.500"

FAQs

What thread size is the 10410 rod end?
It has a female 3/8-24 UNF right-hand thread.

What bolt size suits the ball bore?
The ball ID is 3/8".

What is the benefit of a spherical rod end?
A spherical rod end allows controlled angular movement between connected components while transferring mechanical motion.

Is the bearing race metal?
No. The 10410 uses a nylon bearing race.
