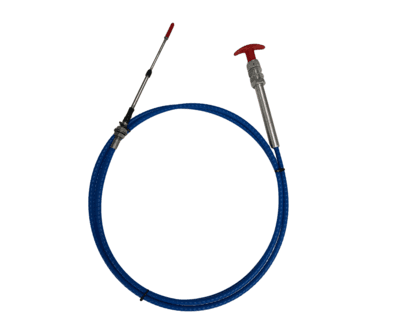

Twist Lock Cable – Bulkhead Hub 2.25m ( 333050-0225 )

The 333050-0225 offers a 2.25m cable length with 50mm travel and a 7/16-inch bulkhead mounting hub. This 30 Series style twist lock cable transfers manual push-pull movement to a compatible remote mechanism and holds the selected position when the knob is twisted.

Specifications:

• Part number: 333050-0225

• Cable style: 30 Series

• Cable length: 2.25m

• Travel: 50mm

• Hub configuration: 7/16-inch bulkhead mounting hub

• Control head: twist lock

Potential uses include engine speed adjustment, throttle control and other machinery functions that need a maintained setting. Suitability depends on the equipment’s operating and connection requirements.

The 2.25m version provides a routing option between the 2.00m and 2.50m lengths. Select the length that matches your installation and confirm that the required control movement is 50mm.

Contact Industrial & Cable Group for assistance with replacement cable selection or a new mechanical control installation.
