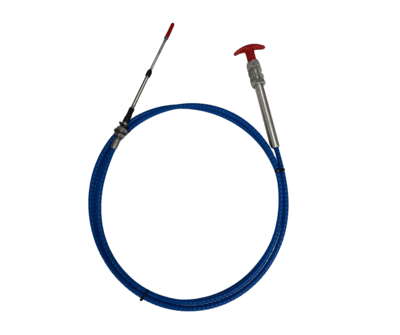

Twist Lock Cable – Bulkhead Hub 2.25m ( 333075-0225 )

The 333075-0225 twist lock control cable combines a 2.25m length with 75mm operating travel and a 7/16-inch bulkhead mounting hub. The twist lock head lets the operator adjust the control and maintain the desired position by twisting the knob.

Specifications:

• Part number: 333075-0225

• Cable style: 30 Series

• Cable length: 2.25m

• Travel: 75mm

• Hub configuration: 7/16-inch bulkhead mounting hub

• Control head: twist lock

This cable can be considered for compatible throttle, hydraulic valve and other adjustable machinery controls requiring 75mm travel.

Check both length and travel when comparing options: the 2.25m length determines the routing choice, while 75mm travel identifies the specified operating movement. Confirm hub compatibility and end connections with the equipment.
