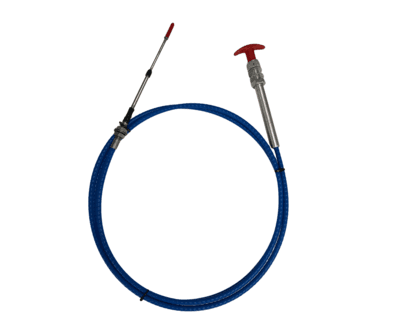

Twist Lock Cable – Bulkhead Hub 2.50m ( 333075-0250 )

The 333075-0250 provides a 2.50m cable length and 75mm travel in a 30 Series style twist lock configuration. Its 7/16-inch bulkhead mounting hub must be matched to the equipment’s mounting requirements.

Specifications:

• Part number: 333075-0250

• Cable style: 30 Series

• Cable length: 2.50m

• Travel: 75mm

• Hub configuration: 7/16-inch bulkhead mounting hub

• Control head: twist lock

The control head allows manual push-pull adjustment, followed by a twist of the knob to retain the selected position. Potential applications include compatible throttle, engine speed and hydraulic valve controls.

This 75mm-travel version differs from the 50mm option of the same length. Match the operating movement to the mechanism and confirm the complete cable route, hub fit and end connections.

Contact Industrial & Cable Group for help selecting a twist lock cable for replacement work or a new equipment installation.
