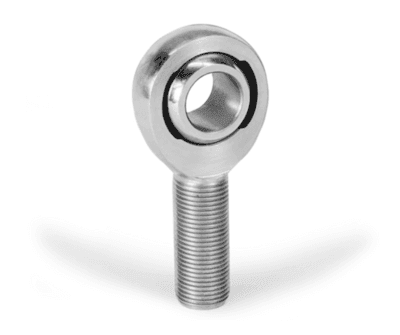

Chrome Molly MXM - Rod End - 3/4" x 5/8" LH (10142)

Chrome Moly MXM Rod End – 3/4" x 5/8" Male Spherical Rod End – LH

Thread: Male 3/4-16 LH x 1.750"
Long Ball ID: 5/8"
Housing Material: 4130 Heat Treated Chrome Moly Steel
Finish: Bright Chrome
Plated Ball Finish: Hard Chrome
b Slotted Nylon Housing
Width: 1.755"
Base of Rod End to Center of Ball: 2.875"
Ball Thickness: 0.875"
Ultimate Static Load Rating: 25,489 lbs
Common Other Names for this Product: chromoly heim joint, rose joint
Application: Our larger chrome moly Spherical Rod Ends are used as sway bar end links, panhard bars, control arms, three link and four link suspensions and strut tower braces. This size rod end is often used in hand or foot actuated push-pull linkages.
Alternative Designs: For lighter duty linkage applications, consider our MSM (steel raced) series, our MTM (telfon raced) series, STM (stainless) series, or MPM (nylon) series.
Metric Alternative: The metric equivalent to this series is our DXTM series.
Warning: Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application.
