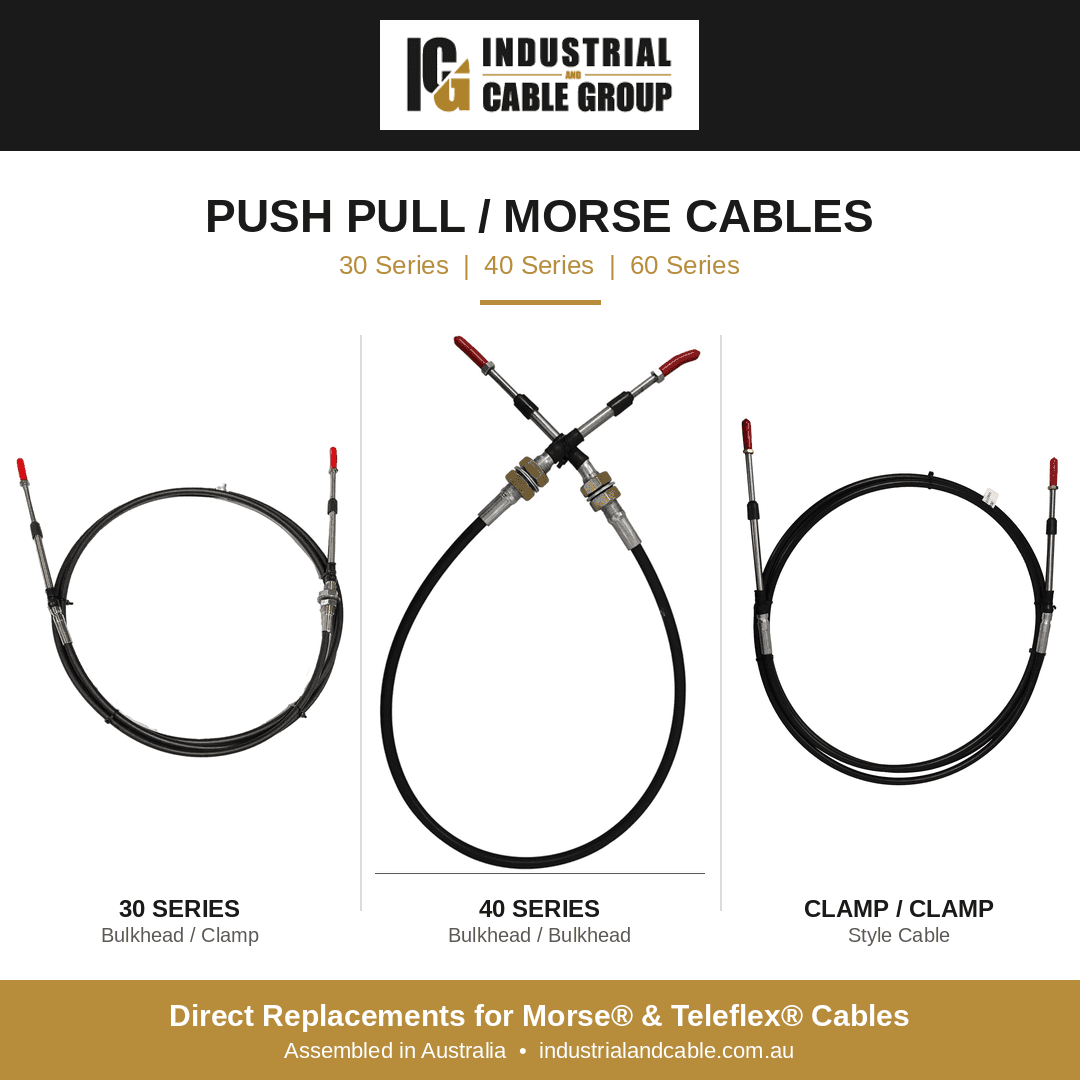

Push Pull / Morse Cables Explained: 30 Series, 40 Series & 60 Series Control Cables

Industrial & Cable Group supplies the complete range of 30 Series, 40 Series and 60 Series push pull control cables, manufactured by our sister company, Multiflex Australia. Within Multiflex Australia's manufacturing system these are known as Version 3, Version 4 and Version 6 cables. They are direct replacements for many Morse® and Teleflex® control cables used throughout Australia.

Whether you're maintaining earthmoving equipment, servicing a truck fleet, or keeping a production line running, getting the right push pull cable matters. Below we've answered the questions we're asked most often — from picking the right series through to ordering the accessories that complete the job.

Which Cable Do I Need?

The right cable comes down to three things: the series (which sets the rod diameter and load capacity), the length, and the end fitting configuration.

• 30 Series – lighter-duty applications, 3/16" rod
• 40 Series – medium-duty applications, 1/4" rod
• 60 Series – heavy-duty applications, 5/16" rod

Once you know your series, you'll also need to confirm the overall cable length and whether each end is Clamp, Bulkhead, or a Bulkhead/Clamp combination. If you're replacing an existing cable, the easiest way to get all of this right is to measure the old cable (see below) or read the part number off the original if it's still legible.

Not sure where to start? Browse the full range on our Push Pull Control Cables category page, or contact our team and we'll help you match the right cable to your machine.

What Is a 30 Series Cable?

A 30 Series cable — known as a Version 3 cable within Multiflex Australia's manufacturing system — is built around a 3/16" rod and is typically used for lighter-duty push pull control applications. It's a direct replacement for Morse® and Teleflex® cables commonly coded 31C, 32C, 33C, 34C and 35C, along with their B (Bulkhead) and BC (Bulkhead/Clamp) equivalents.

The same naming logic applies across the range:

How Do I Measure One?

To measure an existing push pull cable, take note of:

1. Overall length – measured from the tip of one end fitting to the tip of the other, with the cable laid straight (not coiled).
2. End fitting type at each end – Clamp, Bulkhead, or a mix of the two.
3. Rod/series size – this is usually easiest to confirm from the original part number, or by comparing rod diameter against the 3/16", 1/4" and 5/16" series sizes above.
4. Conduit and travel – how far the inner core needs to move (the stroke length) can also affect which cable suits your application.

If you're at all unsure, our team can talk you through it, or help you match a part number from your existing Morse® or Teleflex® cable to the equivalent 30, 40 or 60 Series cable.

Are These Compatible With Morse?

Yes. Our 30 Series, 40 Series and 60 Series cables are designed as direct, "same, same but different" replacements for Morse® and Teleflex® Morse push pull control cables. This compatibility isn't accidental — the cables are manufactured by Multiflex Australia, whose founder was formerly part of the Teleflex Morse / Morse Controls team during their time operating out of Sydney. That background, combined with current manufacturing technology, is what allows the range to match original Morse® and Teleflex® specifications so closely.

Can I Customise One?

Yes. Beyond the standard 30, 40 and 60 Series options, specialty cables can be built to order for long or short runs and non-standard configurations. If a standard length or end combination doesn't suit your application, get in touch and we'll work through a custom specification with you.

What Industries Use Them?

Push pull control cables in this range are used across a wide variety of sectors, including:

• Building & Construction
• Agriculture
• Earth Moving
• Transport
• Marine
• Motor Vehicle
• Mechanical Engineering

You can read more about how we support each of these sectors on our Industries Serviced page.

What Accessories Should I Order?

A push pull cable is only half the job — most installations also need end fittings and hardware to complete the connection. Commonly ordered alongside 30, 40 and 60 Series cables:

• Ball Joints
• Rod Ends
• Clevises
• Cable Clamps
• Wire Stops
• Pivots
• Fasteners

It's worth checking these against your existing setup before you order, since end-fitting hardware can wear out well before the cable itself does.

Do You Make Them in Australia?

Yes. The 30, 40 and 60 Series cables sold by Industrial & Cable Group are manufactured by our sister company, Multiflex Australia, and assembled locally. That means faster turnaround, local technical support, and cables built to suit Australian and New Zealand conditions — backed by decades of hands-on experience with Morse® and Teleflex® style products.

Ready to order? Browse the full Push Pull Control Cables range, or contact our team for help finding the right replacement.

For more on the manufacturing side of these cables, visit Multiflex Australia or read their original article, Push Pull – Morse Cables.
