How to Adjust a Vernier Control Head for Precision Performance

When it comes to achieving accurate and reliable control in your application, correct adjustment of your vernier control head is essential. While every vernier cable is factory tested prior to dispatch to ensure smooth and correct operation, real-world installations often require fine-tuning to suit specific conditions.

This guide walks you through the simple steps to adjust your vernier head in the field—helping you get the exact performance and feel your application demands.

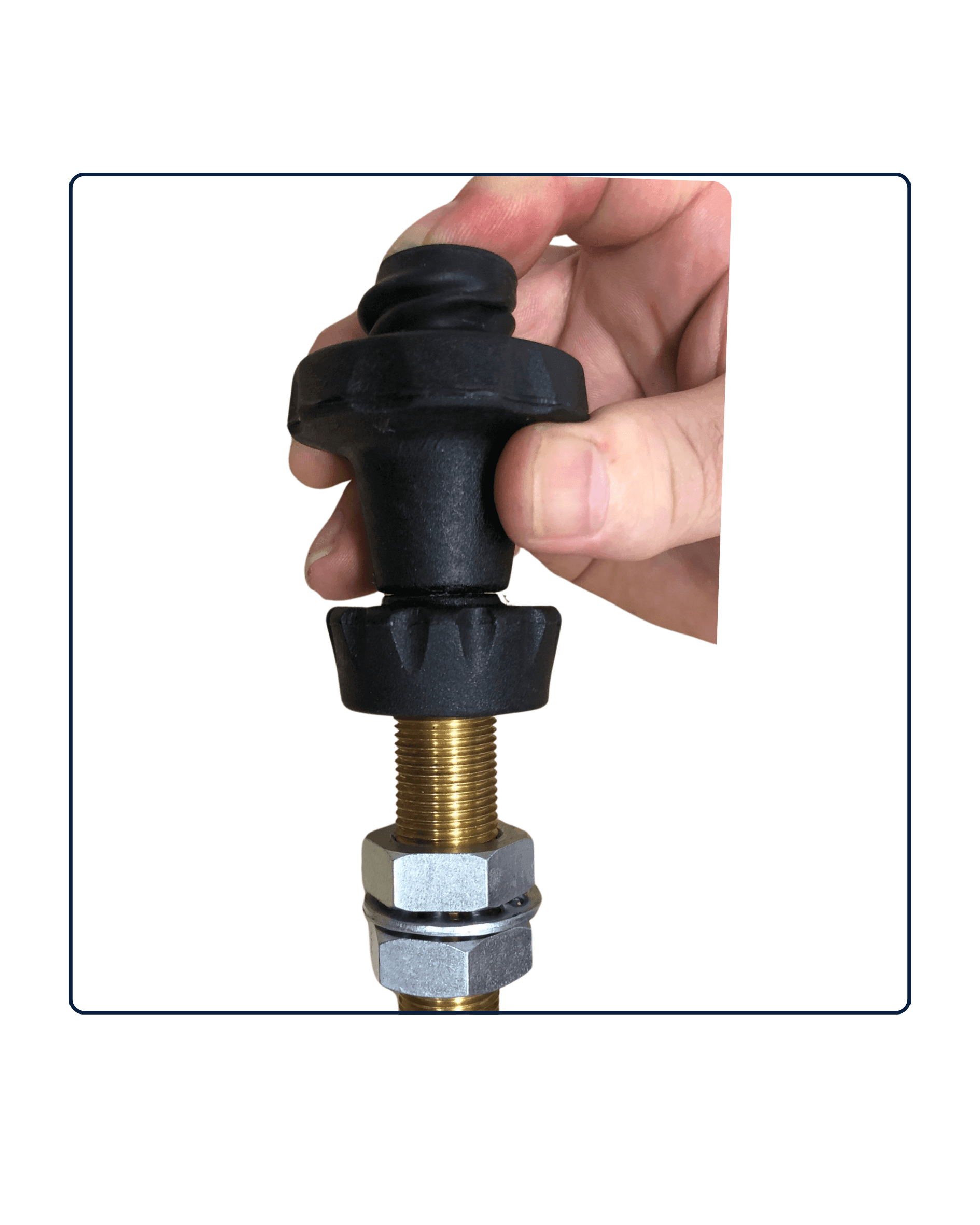

Understanding the Key Components

Before making adjustments, it’s important to familiarise yourself with the main parts of the vernier head:

• Release Button

• Throttle Adjustment Knob

• Vernier Shaft

• Brake Adjustment Wheel

• Brake

Each component plays a role in delivering both coarse and fine control, as well as the overall feel of operation.

Step-by-Step Adjustment Guide

1. Macro Adjustment (Large Movement)

To make larger positioning adjustments:

• Depress the Release Button

• Move the control to the desired position along the Vernier Shaft

This allows for quick, broad movement when setting your initial position.

2. Micro Adjustment (Fine Tuning)

Once your general position is set, fine-tune with precision:

• Turn the Throttle Adjustment Knob clockwise or counterclockwise

• This provides small, controlled adjustments for accurate positioning

This is ideal for applications where precision control is critical.

3. Adjusting Operating Feel

To customise the resistance or “feel” of the cable:

• Turn the Brake Adjustment Wheel clockwise to increase friction

• Turn it counterclockwise to decrease friction

This adjustment changes how heavy or light the control feels during operation, allowing you to match operator preference or application requirements.

Why Field Adjustment Matters

No two installations are exactly the same. Factors such as mounting position, load requirements, and user preference all influence how a control cable should perform.

Taking a few minutes to properly adjust your vernier head ensures:

• Improved control accuracy

• Better operator comfort

• Increased system efficiency

• Reduced wear over time

Built for Reliability, Backed by Testing

Every vernier cable supplied by Industrial and Cable Group is factory tested before leaving our facility. This ensures dependable performance right out of the box—while still allowing the flexibility to fine-tune in the field.
