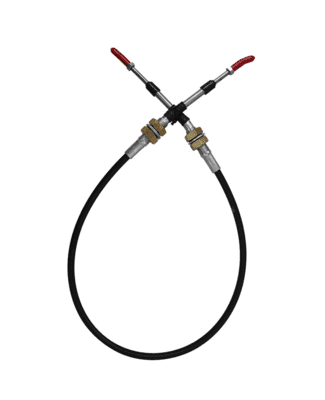

How to measure a control cable for replacement?

At Industrial and Cable Group we are often approached about replacement of control cables and how to accurately measure it and or find something that will fit a specific application.

The first thing to check for is a part number – some cables have it heat stamped on the outer / conduit of the cable.   It may have also have a brand name printed on it, for example - Morse or Teleflex.  If you know this then we can more than likely can help you with finding a replacement.

If you can’t find this then the answer is to look at the cable you’re replacing; measure it from tip to tip, then take note of what type of cable ends it has eg Bulkhead or Clamp (threaded or grooved).  Most cable types are measured tip to tip but there are some exceptions to this rule.

The other pieces of information you will need is an understanding of the Cable Series you’re replacing that corresponds to the size of the rods it has.  For example, 30 Series has 3/16” Rod, 40 Series – 1/4” Rod and 60 Series – 5/16” Rod.  Our 40 Series can also come with metric rods at 6mm and 60 Series with metric 8mm rods.  Other control cables may have differing identifying factors.

The next step is knowing what length of travel you need – our standard options offer between 25mm through to 150mm.

In summary the pieces of information you need are:

• What Ends?
• What Travel?
• What Length?
• Does it have a part number or brand?

Of course, it you can’t find what you’re looking for on our site then we suggest taking photos of your old cable and sending them to us so we can offer some assistance.  Use our CONTACT US FORM or email to sales@industrialandcable.com.au
