Remote Valve Control Cables: How to Choose the Right RVC Cable for Your Equipment

When a hydraulic valve is positioned away from the operator, a reliable mechanical connection between the control and the valve becomes an important part of keeping the machine working safely and efficiently.

That is exactly what a Remote Valve Control Cable, or RVC cable, is designed to do.

Remote Valve Control cables are mechanical push-pull cables used to transfer movement from a hand control or lever to a remotely mounted hydraulic or pneumatic valve. They are widely used across agricultural machinery, construction equipment, transport, mobile plant, hydraulic power packs and industrial machinery.

At Industrial & Cable Group, we supply an extensive range of Remote Valve Control Cables and compatible mechanical hand controls, providing Australian industry with a convenient way to identify, configure and purchase replacement components online.

What Is a Remote Valve Control Cable?

A Remote Valve Control cable connects an operator's mechanical control to a valve located elsewhere on the machine.

Moving the control lever pushes or pulls the inner cable, transferring that movement to the valve spool.

In simple terms:

Operator Control → RVC Cable → Hydraulic Valve → Machine Function

This allows hydraulic valves to be positioned where they make sense mechanically, while the operator control can be installed in a safer and more convenient location.

Instead of needing direct access to the valve, the operator can control it from a cab, console, platform or other remote operating position.

Where Are RVC Cables Used?

Remote Valve Control cables can be found across a broad range of industrial and mobile equipment.

Typical applications include:

• Agricultural machinery and implements

• Construction equipment

• Excavators and earthmoving machinery

• Tippers and transport equipment

• Hydraulic power packs

• Cranes and lifting equipment

• Forestry machinery

• Materials handling equipment

• Mobile plant

• Municipal and utility vehicles

• Industrial machinery

• Custom hydraulic systems

Wherever a hydraulic or pneumatic valve needs to be mechanically operated from another position, a push-pull Remote Valve Control cable can provide a simple and reliable solution.

Choosing the Right RVC Cable

When replacing an existing cable, length is only one part of the equation.

The cable also needs to have the correct hub or mounting configuration at each end.

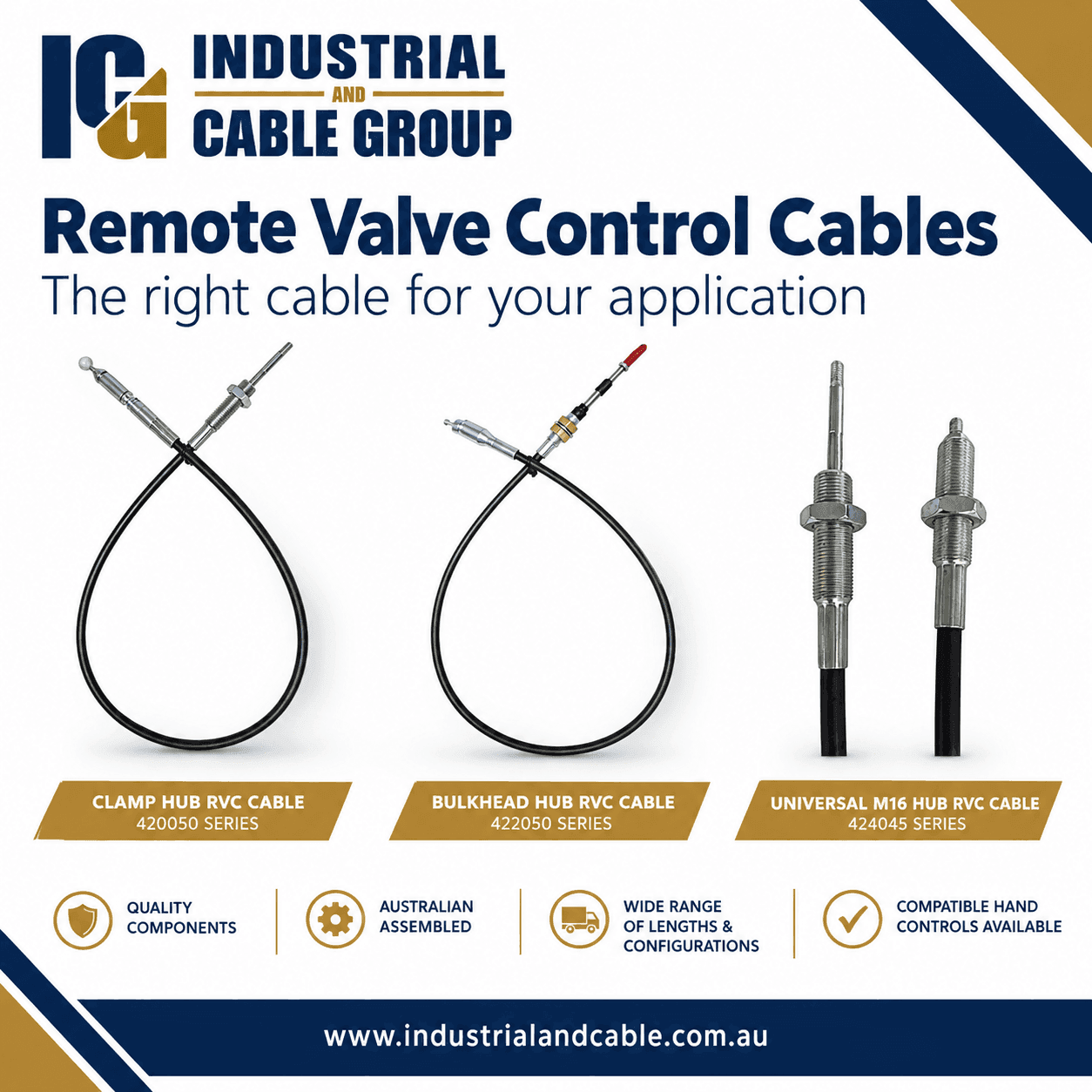

Industrial & Cable Group's Remote Valve Control Cable range includes a number of configurations designed to suit different controls, valves and existing installations.

These include:

Clamp Hub RVC Cables – 420050 Series
Designed for installations where the cable is retained using a clamp-style mounting arrangement.

Bulkhead Hub RVC Cables – 422050 Series
Designed for installations where the cable passes through and is secured to a panel, bracket or bulkhead.

Universal M16 Hub RVC Cables – 424045 Series
Provides an alternative mounting configuration for compatible valve control systems.

Other configurations within the range include universal, bulkhead/universal and ball-type RVC cables for specific replacement applications.

VIEW THE INDUSTRIAL & CABLE GROUP REMOTE VALVE CONTROL CABLE RANGE

Replacing Morse, Teleflex and Other RVC Cables

One of the most useful applications for our RVC range is replacing an existing control cable that has worn out, become damaged or is no longer readily available through the original manufacturer.

Industrial & Cable Group stocks RVC cable configurations designed to replace or suit a number of recognised OEM cable systems.

Depending on the particular RVC cable, these include replacements or compatible options for part numbers such as:

• Morse 206365

• Morse 206366

• Morse 292959

• Morse 294802

• Morse 191638

• Cross 191636

• Nimco-compatible applications

If an old cable carries a Morse, Teleflex, Cross or other OEM number, don't assume the complete control system needs to be replaced.

In many cases, identifying the original cable number, mounting arrangement, travel and overall length can help determine a suitable replacement.

This is where Industrial & Cable Group's experience with mechanical control cables can make the process considerably easier.

Cable Length Matters Too

Once the correct cable configuration has been identified, you also need the correct overall length.

When measuring an RVC cable, don't simply measure the straight-line distance between the hand control and the hydraulic valve.

The cable needs to follow its actual routing through the machine, allowing for gradual bends and avoiding tight curves that can increase friction and operating effort.

If you are replacing an existing cable, checking its original part number and measuring the existing cable is generally the best place to start.

Our Remote Valve Control Cables are available across a wide range of lengths, making it easier to select a cable suited to the actual installation rather than trying to make an unsuitable standard length fit.

Match the Cable to the Right Remote Valve Control

The cable is only half of the system.

Industrial & Cable Group also supplies the mechanical hand controls used to operate Remote Valve Control cables.

Our range includes three key Multiflex valve controls for different applications.

XVL-920 Light Duty Valve Control

The XVL-920 is a compact light-duty mechanical control for remotely operating hydraulic valves.

With an aluminium body, 30 mm cable travel, maximum operating load of 40 kgf and a compact 42 mm-wide body, it is particularly useful where installation space is limited.

Its stackable design also means multiple controls can be installed together when several hydraulic functions need to be operated from the same position.

The XVL-920 is designed for use with the Multiflex 428050 Series RVC cable.

Typical applications include agricultural machinery, hydraulic power packs, construction equipment, vehicle-mounted hydraulics, mobile plant and industrial machinery.

VIEW THE XVL-920 LIGHT DUTY VALVE CONTROL

XVL-670 Dual Remote Valve Control

Where multiple valve banks need to be operated, the XVL-670 Remote Valve Control provides a compact dual-control solution.

It offers up to 30 mm of travel and is suited to industrial, agricultural and mobile hydraulic applications including agricultural equipment, construction machinery, forestry equipment, materials handling equipment and custom hydraulic systems.

Compatible RVC cable options include:

• 420050 Clamp Hub

• 422050 Bulkhead Hub

• 424045 Universal M16 Hub

VIEW THE XVL-670 REMOTE VALVE CONTROL

XVL-900 Heavy Duty Remote Valve Control

For more demanding applications, the XVL-900 is a heavy-duty mechanical Remote Valve Control.

Featuring a robust aluminium body, maximum operating load of 50 kgf and 45 mm cable travel, the XVL-900 is suited to larger hydraulic spool valves and demanding industrial environments.

It is commonly used on excavators, cranes, agricultural machinery, hydraulic power packs, forestry machinery, mobile plant and materials handling equipment.

The XVL-900 can be paired with:

• 420050 Clamp Hub RVC cables

• 422050 Bulkhead Hub RVC cables

• 424045 Universal M16 Hub RVC cables

It also accepts Morse 206366, 206365 and 292959 cables, making it particularly useful when replacing or upgrading an existing Remote Valve Control system.

VIEW THE XVL-900 HEAVY DUTY REMOTE VALVE CONTROL

Why the Correct Cable and Control Combination Matters

A Remote Valve Control system relies on the cable and control working together correctly.

Using the wrong cable configuration, an unsuitable length or an incompatible control can result in:

• Excessive operating effort

• Increased cable friction

• Insufficient valve travel

• Excessive play or backlash

• Poor control response

• Premature cable wear

• Difficult installation

• Unexpected machinery downtime

Selecting the correct cable from the outset provides smoother operation and helps maximise the working life of the complete system.

Australian-Assembled RVC Cables

Industrial & Cable Group Remote Valve Control cables are assembled to order in Australia using quality components.

This gives customers access to a broad range of cable lengths and configurations without relying solely on an off-the-shelf replacement being available.

For maintenance teams and machine operators, that can be particularly important when an older OEM cable has failed and keeping the equipment operating is the priority.

Whether you know the exact part number you need or are trying to identify a replacement for an existing cable, our team can help you work through the available options.

What Information Do I Need to Replace an RVC Cable?

If you need help identifying a Remote Valve Control cable, the more information you can provide, the better.

Start with:

• Any part number printed or stamped on the existing cable

• Cable manufacturer or brand

• Overall cable length

• Required travel

• Hub or mounting style at each end

• Details of the existing hand control

• Details of the valve connection

• Photos of both cable ends and the existing installation

Even if the original cable is obsolete, this information can help determine whether a suitable replacement is available.

Need a Remote Valve Control Cable?

A failed control cable might be a relatively small component, but when it prevents a hydraulic function from operating, it can stop an entire machine.

Industrial & Cable Group makes it easier to source Remote Valve Control cables, mechanical hand controls and compatible replacement components online, backed by practical knowledge of mechanical push-pull cable systems.

Whether you're replacing a Morse or Teleflex-style cable, repairing an existing hydraulic valve control system or building a new installation, start by identifying the correct cable configuration, length and control for the job.

Explore the complete range:

SHOP REMOTE VALVE CONTROL CABLES

SHOP MECHANICAL HAND CONTROLS

Or contact Industrial & Cable Group if you need assistance identifying the correct cable for your application.
